ALKO 628500 Premium 8 Inch Jockey Wheel Side Wind with Clamp
$279.30
ALKO 628500 Premium 8 Inch Jockey Wheel Side Wind with Clamp
The space available to operate a conventional top wind jockey wheel may be impacted upon by gas bottles or toolboxes mounted on the caravan or trailer drawbar. The side wind allows for unobstructed operation and the gearbox reduces the winding force required to raise the drawbar
- Description
- Additional information
- Reviews (0)
- Features
Description
The space available to operate a conventional top wind jockey wheel may be impacted by gas bottles or toolboxes mounted on the caravan or trailer draw bar. The side wind allows for unobstructed operation and the gearbox reduces the winding force required to raise the drawbar.
Effortless Winding
Suitable for static loads of up to 400kg, the integrated gearbox fitted with an easy-to-access grease nipple reduces the winding force required to raise and lower the drawbar.
Extra Wide Clamp
The extra wide clamp supplied with the side wind jockey wheel is most commonly welded directly to the drawbar but can be mounted using fixing bolts if preferred.
Fixing Points
The new side wind jockey wheel features a multi-height 4-ring design to allow multi-position mounting using the included weld-on/bolt-on clamp.
Premium 8 ? Wheel
The side wind jockey wheel is supplied with premium zinc-plated steel wheels fitted with 8? x 2? solid rubber tyres making manoeuvring effortless.
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 80 × 24 × 16 cm |
| Brand | AL-KO |
| Capacity | 400Kg |
Be the first to review “ALKO 628500 Premium 8 Inch Jockey Wheel Side Wind with Clamp”
You must be logged in to post a review.
Static Load Capacity: 400kg
Fixing points: multiple heights – 4 ring design
Clamp: extra wide weld on / bolt on.
Finish: zinc plated
Wheel: 200mm metal with solid tyre

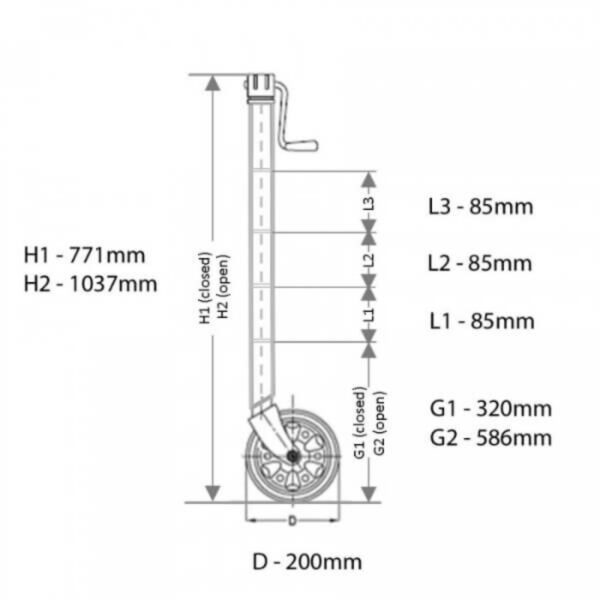

Min height: 771mm
Max height: 1037mm
Extension: 266mm
