Premium 8″ Jockey Wheel with Clamp AL-KO 628100 | Genuine ALKO Qualit

0 out of 5

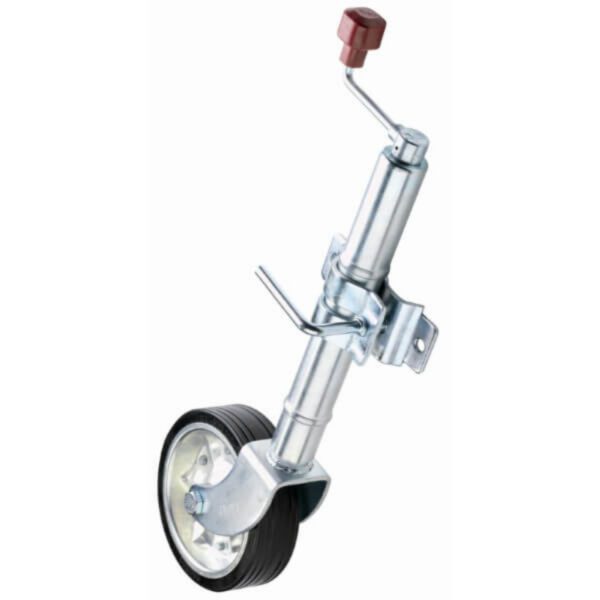

  • Ease of use is the benefit when selecting an Alko Swivel Bracket Jockey Wheel
  • No need to remove it from the trailer – just pull the release handle and the jockey wheel rotates into a suitable traveling position
  • This unique design is covered by Registered Design in Australia and New Zealand
  • The swivel bracket can be either welded or bolted to the drawbar
  • A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar
  • Ideal for marine use


Alko’s premium range of jockeys wheels is made from high-quality materials rated with a static capacity of 400kg or 500kg when used with the alko extra-wide clamp. With standard height or extra tall models available and a complete range of wheels sizes from 150mm to 250mm. This style of jockey wheel comes with or without clamps and is suitable for most caravan and trailer applications.

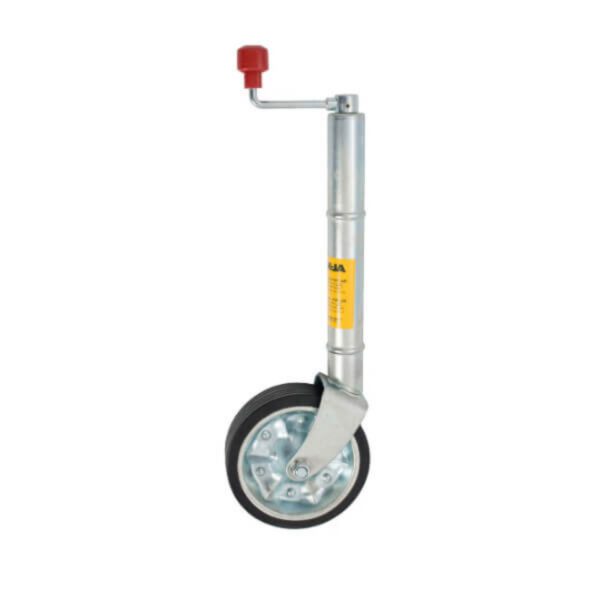

The alko 628100 is a standard height jockey wheel with a 200mm (8″) solid tyre. The zinc coated 48mm diameter shaft has 3 clamping positions providing a lift range of 262mm to 697mm between the ground and centre of the drawbar. This unit is ideal for caravans or trailers which require movement on the soft or uneven ground once detached from the tow vehicle.

This unit includes the standard alko clamp, however, if you wish to increase the rating to 500kg the extra-wide clamp is available as a related product below.

Additional information



  • Brand: Alko
  • Static Capacity: 400kg
  • Wheel Size: 200mm (8″) solid tyre
  • Weight: 7kg

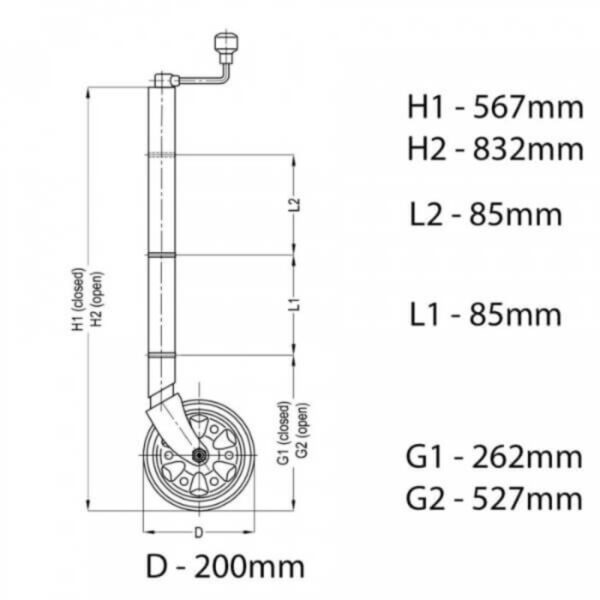

  • Max Lift / extension: 265mm
  • Minimum Ground Clearance(G1): 262mm (from centre of drawbar)
  • Maximum Ground Clearance(G2): 697mm (from centre of drawbar)
  • Overall Shaft Height Open: 832mm
  • Overall Shaft Height Closed: 567mm
  • Finish: Zinc Plated
  • Clamp: Standard bolt/weld on (bolts not included)
  • Shipping Weight: 6.88 Kgs.
  • Shipping Dimensions: 68 cm x 21 cm x 11 cm.
