160 x 80mm Submersible LED Tail Light Kit – Short Lead | Trailparts
$171.50 – $178.00
Trailparts led lamp kit, 160mm,multi-volt,w NPL rectangle
- Description
- Additional information
- Specifications
- Wiring Details
Description
Trailparts Premium LED lamps are designed to be an easy to fit trailer lighting solution that can be fitted in a range of orientations. Box trailers need lamps to fit in a horizontal orientation and shine the number plate across the trailer, from the narrow side of the lamp, whilst boat trailers need a number plate lamp that shines out of the wide side of the lamp downwards. In an innovative solution, the Trailparts? lamps have number plate lamps fitted to one short and one long side of the right-hand lamp, with the user simply connecting whichever of the two number plate function wires that suit their application best. The fact that they look good, have cable length options, are submersible, and E-marked makes them the first choice for many trailer builders
Additional information
| Cable Length | With 3 Metres, With 8 Metres |
|---|---|
| Brand | Trailparts |

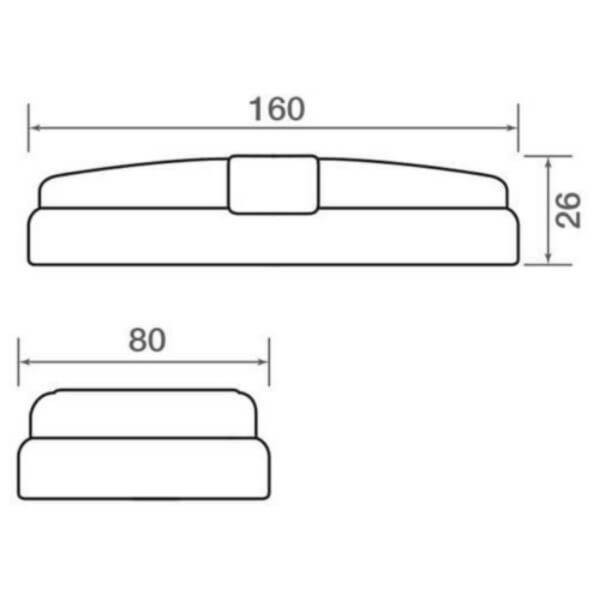

- Compact Size – 160L x 80W x 30D (mm)

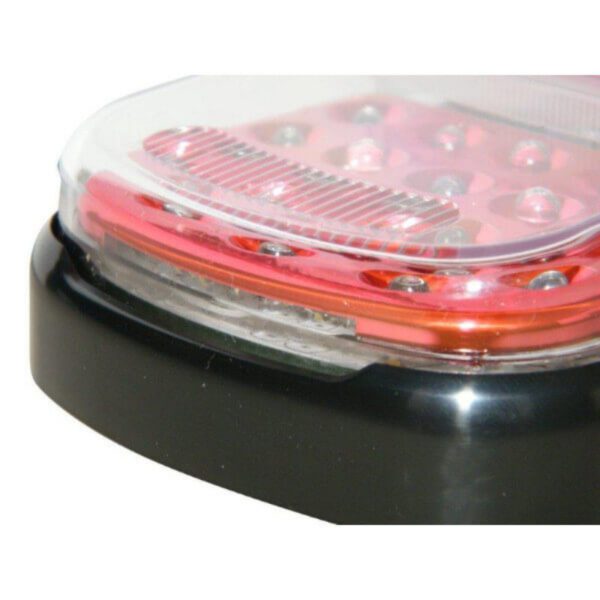

- Strong impact resistant polycarbonate lens

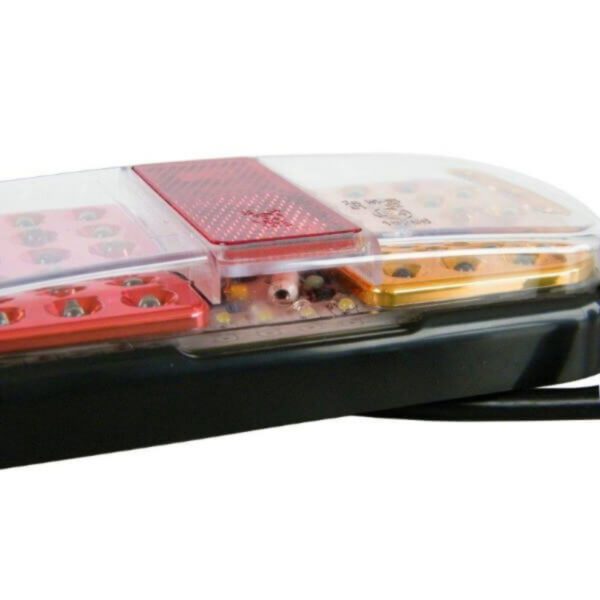

- Inbuilt retro-reflector
- 10-30v capable
- E-mark (E4) certified
- Â 100% Submersible

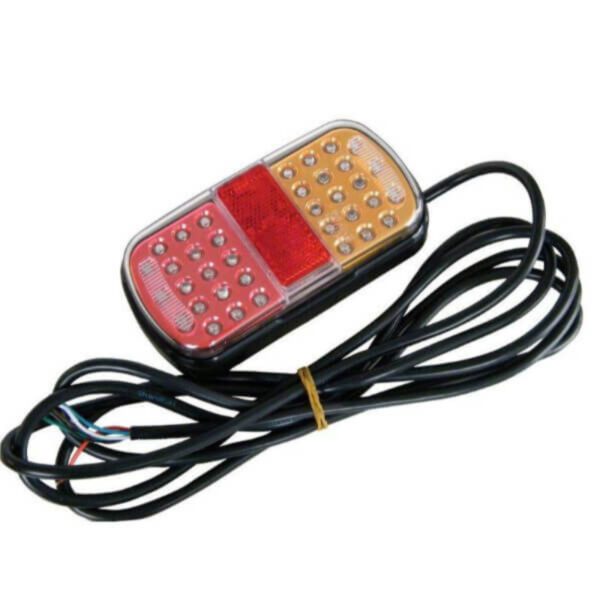

- The left-Hand lamp has a 300mm 4-core cable.
- Right-Hand lamp has 2 number plate lamps, 3m 6-core cable
- Two number plate lamp orientation options
The below wiring details applies to Trailparts lights only.
Left-hand side
Red = Stop lamp
Brown = Tail lamp
Yellow = Indicator lamp
White = Earth
Right-hand side
Black = Number plate lamp – long side
Blue = Number plate lamp – short side
Red = Stop lamp
White = Earth
Brown = Tail lamp
Green = Indicator
