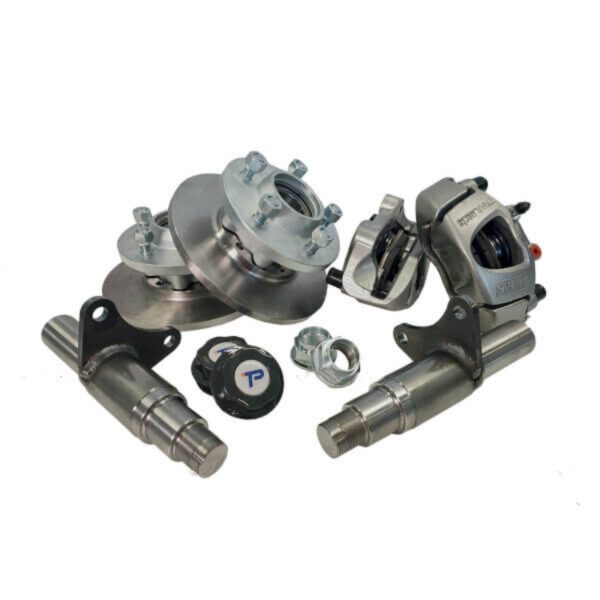

Trailparts 225mm Disc Unihub 1800kg HSS Strike Stainless 5 x 4 1/2″ – Heavy Duty Hub for Off-Road Adventure
$1,755.95 – $1,895.95
Trailparts™ hub design with external seals and unitary back-to-back duplex bearings with integrated seals. The shorter and thicker shafts with an engineering-led approach means safety margins with Unihub are massively increased. Trailparts™ 225mm Strike! Stainless Steel hydraulic brake sets are designed as a cost-effective braking solution and are suited for use on marine trailers that are typically run with lighter loads up to 2500kg. For Heavier marine trailers it is recommended to have two axles braked.
SKU: HU4412H
Tags: 1800kg HSS Strike, 1800kg Unihub, 225mm Disc Unihub, 4 1/2 inch, 5 inch, 5 x 4 1/2", 5x4 1/2 inch Hub., Disc Hub, Disc Unihub, HSS Hub, HSS Strike, Stainless, Stainless Hub, Stainless Steel, Trailparts, Trailparts Unihub
- Description
- Additional information
- Reviews (0)
- Specifications
Description
Other features of these brakes are;
- Dacromet coating on rotors &Â hubs for corrosion resistance
- Strike! Stainless Steel calipers, with stainless 54mm (38mm deep) piston and guide pins
- 225mm diameter 11mm thick rotors
- Marine-grade Triple lip waterproof seals
- Sealed back-to-back duplex bearing with integrated seals
- Threaded dust cap with O-ring seal
- 39mm Stub end or 55mm Stub end
Additional information
| Brand | Trailparts |
|---|---|
| Stub Axle | 39mm Stub End, 55mm Stub End |
| Capacity | 1800kg |
Be the first to review “Trailparts 225mm Disc Unihub 1800kg HSS Strike Stainless 5 x 4 1/2″ – Heavy Duty Hub for Off-Road Adventure”
You must be logged in to post a review.
| Stud Pattern | 5 x 4½” |
| Stud/Nut Size | ½” |
| Rating | 1800kg |
| Calipers (pr) | B3700SS (Strike!) |
| Hub kit only (pr) | HU4302H (Unihub) |
| Rotor only (ea) | H4211 |
| Stud Part number | H4982 |
| Nut Part number | H4996 (10 supplied in kit) |
| Stub Part number | AU912E |
