Trailparts Spring Set Tri-Axle 610mm 5250kg – Eye/Slipper Equalising, Painted

0 out of 5

$1,897.50

spring set tri-axle 610 mm 5250 kg, eye/slipper equalising, painted

– tri-axle spring set, rated to 5250 kg.

– 610 mm long, 8 leaf springs, 50 mm wide with m16 eye bolt.

– eye/slipper equalising system, has minimum pivot points, which reduces maintenance.

– painted finish.

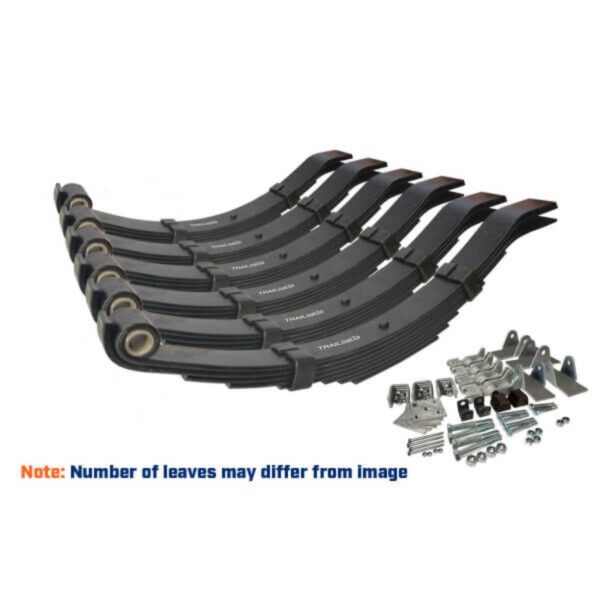

– spring set consists of 6 springs and fitting kit which includes hangers, slippers, rockers, axle plates, spring eye bolts and square u-bolts

Description

this suspension uses the components from teh trailparts 610mm eye/slipper equalizing suspension but adds an extra axle. Simple to fit and with a minimum of pivot points ensures a low-maintenance high-strengthtri-axle suspension option.

  • feature a wrapped second leaf for extra eye support
  • fitting as shown are supplied when spring sets are ordered
  • round u-bolts are available on request
  • heavy centre hangers available on request
finish black
capacity (set/6) 5250kg
leaves 8

Additional information

Brand

Trailparts

Capacity

5250kg
