Galvanized Trailparts Spring Set Tri-Axle 610mm 4500kg – Eye/Slipper Equalizing

0 out of 5


spring set tri-axle 610 mm 4500 kg, eye/slipper equalising, galvanized

– tri-axle spring set, rated to 4500 kg.

– 610 mm long, 6 leaf springs, 50 mm wide with m16 eye bolt.

– eye/slipper equalising system, has minimum pivot points, which reduces maintenance.

– galvanized, suitable for marine applications.

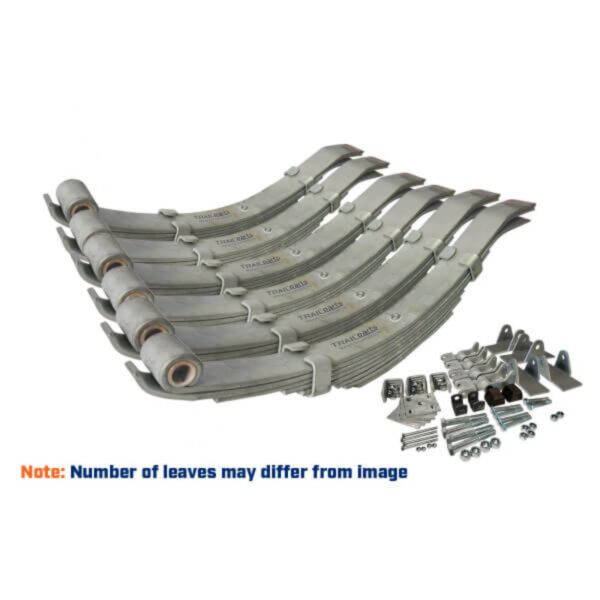

– spring set consists of 6 springs and fitting kit which including hangers, slippers, rockers, axle plates, spring eye bolts and square u-bolts.


this suspension uses the components from the trailparts 610mm eye/slipper equalizing suspension but adds an extra axle. Simple to fit and with a minimum of pivot points ensures a low-maintenance high-strengthtri-axle suspension option.

    • feature a wrapped second leaf for extra eye support
    • fitting as shown are supplied when spring sets are ordered
    • round u-bolts are available on request
    • heavy centre hangers available on request

Additional information





Description Part # Qty
Springs 6 Leaf zinctech 1500kg/pair S3226 3
Centre hanger bracket – Eye/slipper rocker S3680H 4
Rocker arm galvanised – Eye/slipper rocker S3681 4
M8 retainer bolt / nyloc S3420 4
Rocker bolt / nyloc M20 x 130 mm – Eye/slipper rocker S3423 4
U-bolts square 123mmL x 51mmW inside x M12 Ø, Galv S3437 12
Axle plates 8 mm galvanised suits 50mm axle S3415 6
Spring Hanger 52 mm x 6mm x 17mm dia hole S3404 2
Spring Slipper 52mm Deep S3409D 2
Eye bolt / nyloc M16 x 90 mm S3422 2
Eye bolt / nyloc M16 x 100 mm S3424 4
