Cm Trailers Torsion Arm Suspension 1/2 Sets 1000Kg to 2000Kg Bare: Durable & Reliable Suspension for Heavy Loads

0 out of 5

$1,850.95$2,850.95

Torsion Arm Suspension Sets – 1000-2000kg – Bare

Clear

Description

CM Trailer Parts’s new design of rubber torsion arm suspensions is packed full of features and the new splined trailing arms make ride height simple and easy to adjust. A first for New Zealand. Their design makes them ideal for use in a variety of applications, particularly where a low deck height is required such as caravans, car transporters, horse floats, boat trailers, and domestic trailers. As a suspension system, they are easy to install as they are completely self-contained.

Additional information

Torsion Arm Suspensions

Load Capacity: 1000kg Braked, Load Capacity: 1000kg Unbraked, Load Capacity: 1500kg Braked, Load Capacity: 1500kg Unbraked, Load Capacity: 2000kg Braked, Load Capacity: 2000kg Unbraked

Brand

Cm Trailers

Capacity

1000kg to 2000kg

  • Bare Axles Only – Brakes and Hubs are not included
  • Inner and outer alignment bushings
  • Available in 1000kg, 1500kg and 2000kg sets
  • Splined Trailing Arm which allows for 6-degree incremental ride height adjustments
  • A removable Trailing Arm means replacement can be accomplished easily without potential frame damage
  • The combination of inner & outer alignment bushings maintains superior wheel camber and toe-in
  • Floating inner bracket for variable mounting positions
  • Manufacturers’ recommendations are a derating of 10% on tandem axles and 15% for triple axles.

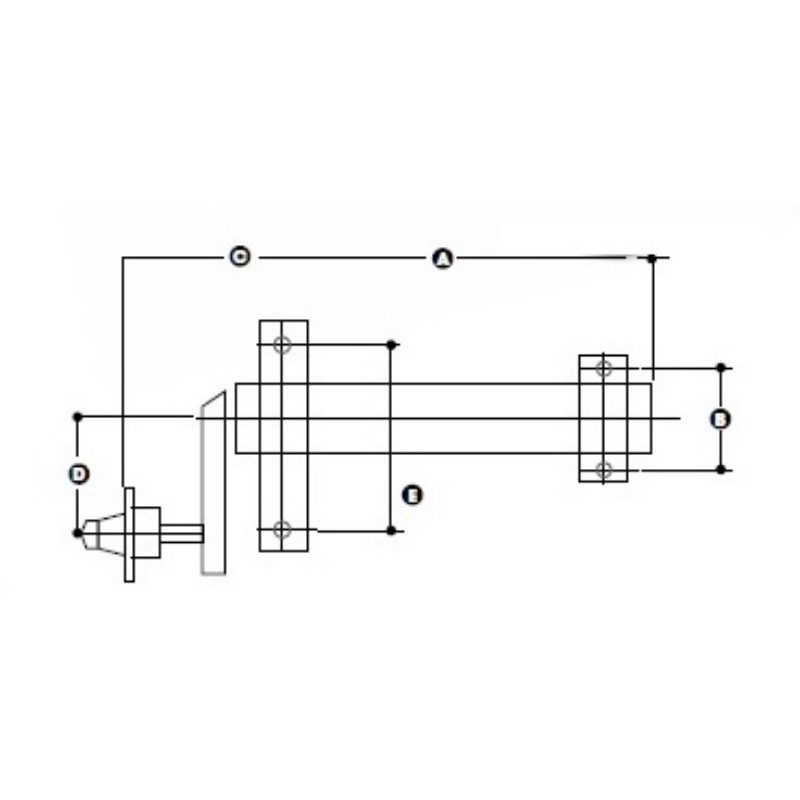

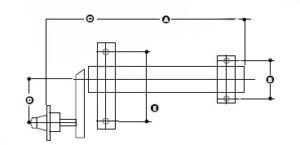

Part # Capacity (kg per pair) A (mm) B (mm) C (mm) D (mm) E (mm) Mount Hole (mm)
TE7TA1000(B) 1000 350 140 220 115 230 12
TE7TA1500(B) 1500 420 140 220 115 230 12
TE7TA2000(B) 2000 470 160 235 115 230 12
