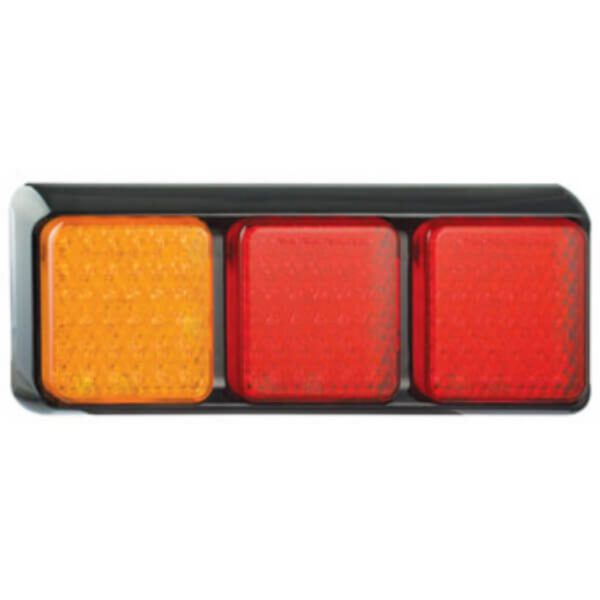

LED Autolamps 80Barr Stop/Tail/Indicator Triple Combination Lamp – Brighten Your Vehicle’s Safety!

0 out of 5


The 80 series lamps are fully submersible, shock resistant and feature our hexagonal lens pattern. The rear of the circuit board is fully encased in resin. Individual clip in lenses for easy replacement, surface mount with no visible screws. Specifically designed for trailers or small sized commercial vehicles.

SKU: 80BARR Tags: , ,


When the safety of you and your family relies on the reliability, durability, and functionality of your lighting trust LED Autolamps. In such a competitive industry, LED Autolamps pride themselves on offering automotive lighting that is both competitively priced and uncompromising on quality. Whether at the boat ramp, crossing outback plains, or just making a run to the shops you can rely on the extensive research and development conducted by LED Autolamps to provide the lighting solutions for your rig or trailer.


  • Individual Lens Replacements
  • ADR Road Approved
  • IP67 Rated
  • 12 Volt and 12-24 Volt
  • 5 Year Warranty

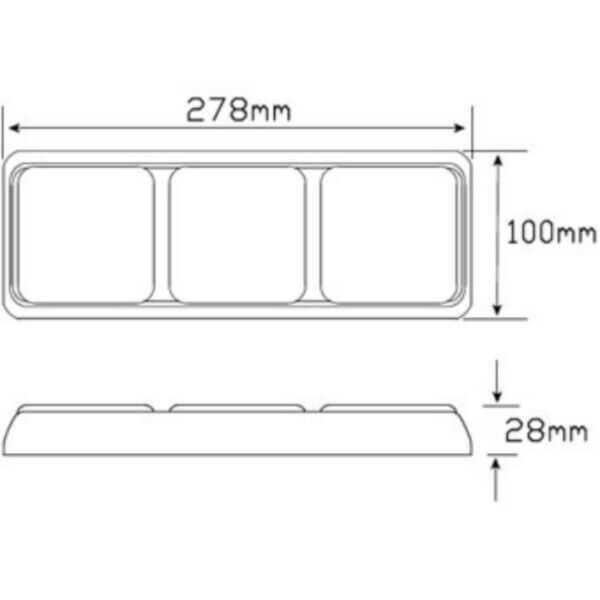

  • 278mm x 100mm x 28mm

Additional information

Weight 1 kg

LED Autolamps

Voltage 12
Light Style Stop/Tail/Indicator Light
Light Type LED
Size 278 x 100 x 28mm
Current Stop: 0.33A, Tail: 0.06A, Indicator: 0.29A @ 13.8V
Mount Surface Mount
Connector Pre-Wired
Environmental IP67
Compliance Stop/Tail: ADR 49/00, Indicator: ADR 6/00 Cat 2A
Manufactured in China (Taiwan)
Packaging Blister Packaging
Operating Voltage 12
Housing Colour Black
Inner Carton Quantity 10
Outer Carton Quantity 20
Manufacturer Approval ADR – CTA060070
Length 4
Width 36
Height 12
Weight 0.461kg
