Hella LED Lamp Trailer Kit – Perfect for Small Trailers | Bright Lighting Solution

0 out of 5

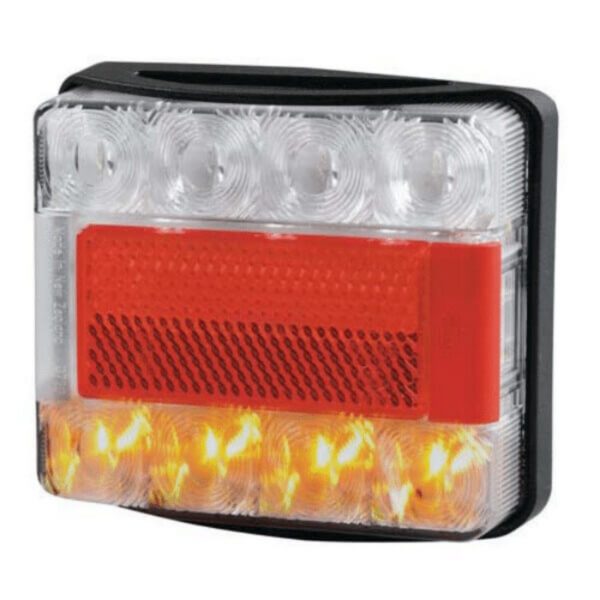

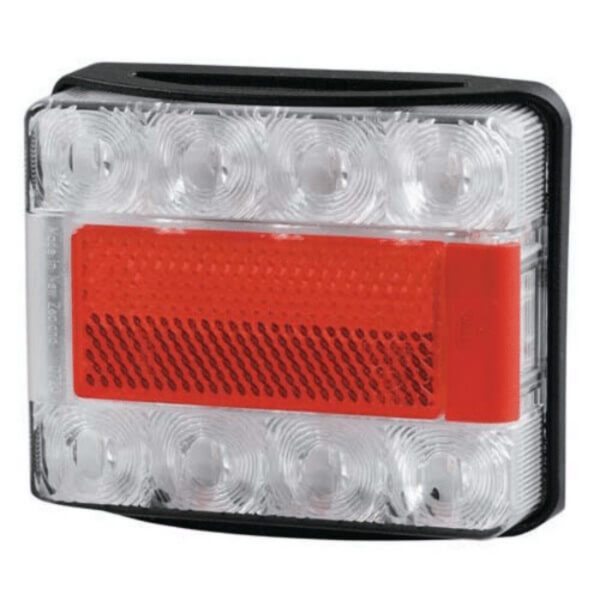

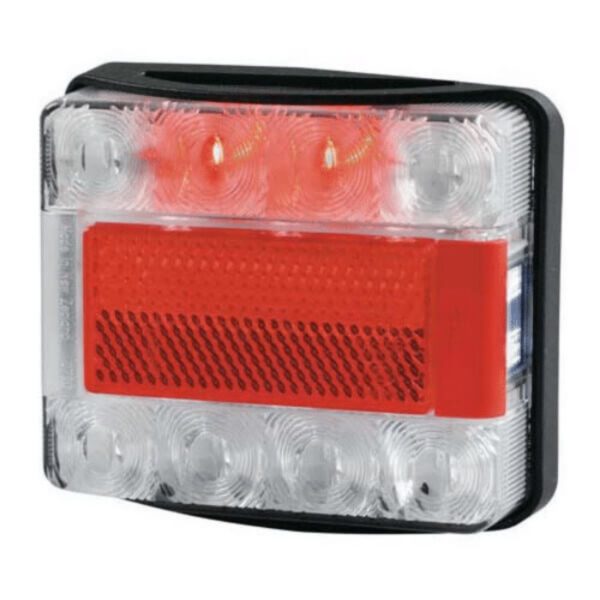

The led trailer lamp incorporates a modern clear lens design with an 18cm red retro reflector. The optic in the lamp appears clear until illuminated. A convenient mounting base with multiple fixing points allow easy fitment to most trailers/vehicles. Fully sealed against dust and moisture ingress as well as a high tolerance to harsh uv levels. Low power consumption and long life equates to economical running costs.


Suitable for small/medium utes, trucks, trailers

Convenient mounting base with multiple fixing points
Easy fitment to most trailers/vehicles

Better Visibility – More Safety
Distinctive lit-up appearance on rear position/stop function increases visibility and awareness

Low power consumption – Long service life
Economical running costs

Tough under pressure
Completely sealed, maintenance-free. Designed to withstand high-pressure washing and temporary submersion.

Grilamid® Lens
Please click on Grilamid® above for further information.

Reliable – durable – ultra-long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra-long service life.

Additional information

Weight 1 kg


Voltage: Dualvolt (12/24V DC)

Wattage: Stop 2W, Rear Position 1W, Rear Indicator 2W

Mounting: Surface mount (horizontal only). Lamp clips into mounting base (multiple mounting holes). License plate mounts to side of lamp.

Protection: Reverse polarity and built-in transient spike protection. Fully sealed to withstand high-pressure washing and temporary water immersion.

ADR No: 6/00 Cat.2a, 49/00, 49/00, 47/00, 48/00

ADR Function: Rear Direction Indicator Lamp, Stop Lamp, Rear Position Lamp, Retro Reflector – Red Rear, License Plate Lamp

CRN: 42030, 42179, 42178, 15294, 42175

1 x Stop/ rear position/rear direction indicator lamp with reflex reflector
1 x Stop/rear position/rear direction indicator/number plate lamp function with reflex reflector
8 x Crimp connector with heat shrink insulation.
