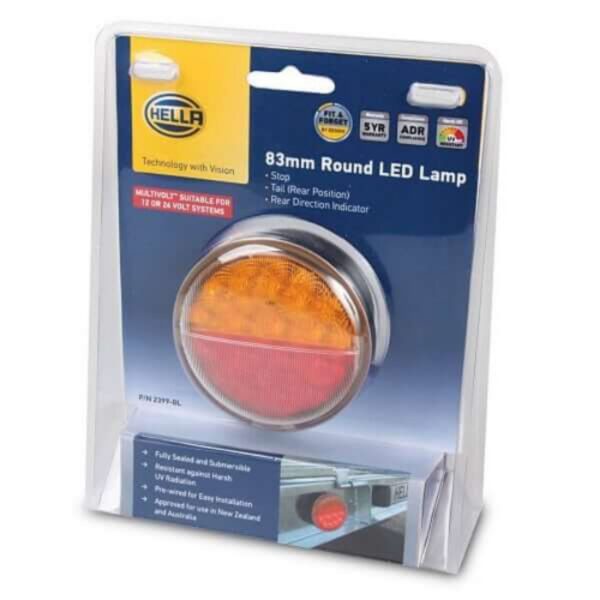

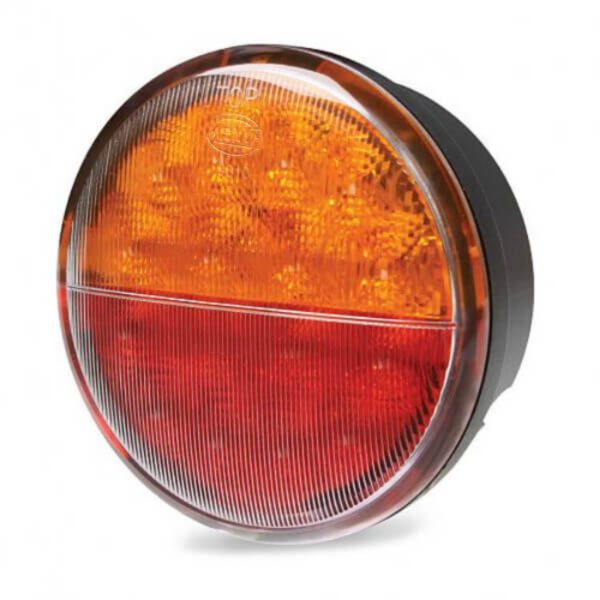

Hella 2399 83mm Round LED Stop/Rear Position/Rear Direction Indicator Lamp – High Visibility & Quality

0 out of 5


Compact, low profile led stop/ rear position/ rear direction indicator lamps ideal for applications with limited mounting space. Features edt (enhanced definition technology) for the stop signal function and unique uwvo (ultra wide visibility optics) for significantly improved side visibility. Fully sealed to withstand high-pressure washing. Design matches that of existing round led signal lamps, part no 2130, 2390 and 1490. Ece compliance e9 1538.


Best of both worlds: Compact, low profile LED lamp with stop, rear position and rear direction indicator function.

Low power consumption Long service life
Economical running costs

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable durable ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Additional information




Voltage: Dualvolt (12 or 24V DC).

Wattage: Stop – 3W, Rear Position – 1W, Rear Indicator – 3W

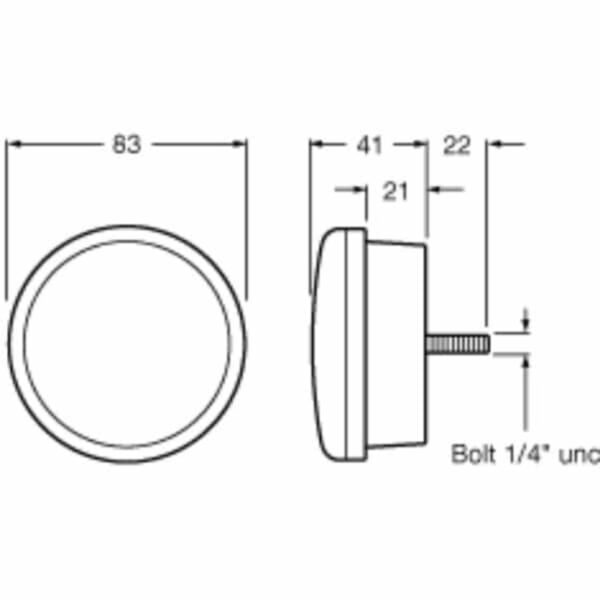

Mounting: Flush mount. Incorporates stainless steel mounting bolt.

Protection: Reverse Polarity and 5.0kW Transient Voltage Suppressor (TVS). Sealed against dust and water ingress.

Note: For heavy-duty transport or construction vehicles, Hella recommends the DuraLed Multivolt Signal Lamp Range.

ADR No: 6/00:Cat 2a, 49/00, 49/00

ADR Function: Rear Direction Indicator Lamp, Stop Lamp, Rear Position Lamp

CRN: 37114, 37116, 37115
