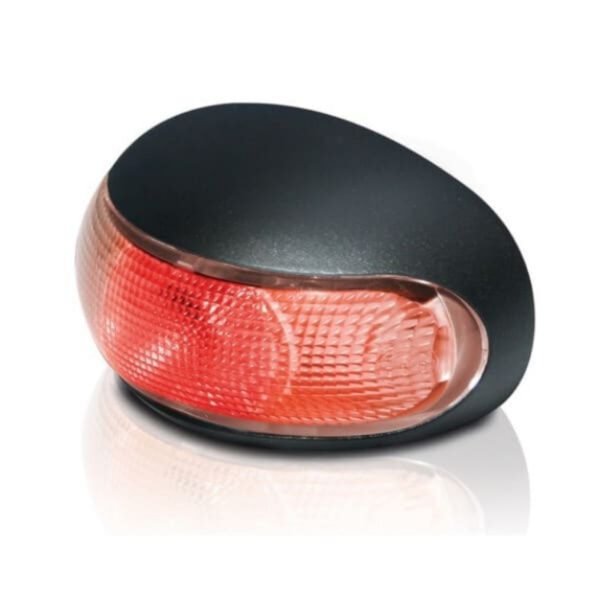

Hella Duraled Rear Position/End Outline Lamp: Brighten Your Vehicle’s Rear View

0 out of 5

$33.60

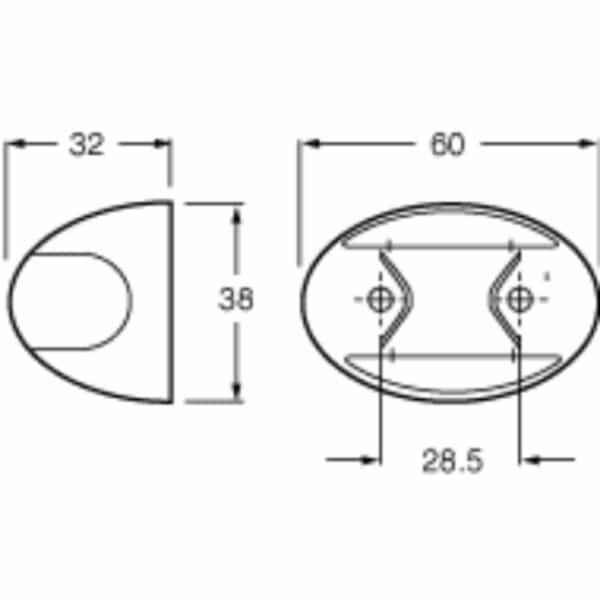

Hella duraled rear position/end outline lamp. Hella multi-voltage l.E.D. Red marker lamp. 8-28V with a low power consumption of 0.4W at 12v. Impact resistant and fully sealed to ip67 standard. Pre-wired with twin sheathed cable. Measures 60mm long x 38mm wide x 32mm high. 3 Year warranty.

Description

Red ultra high impact resistant rear end outline (reol) or rear position led lamp featuring grilamid lens and nylon housing. Optic appears clear until illuminated.

Hella multi-voltage l.E.D. Red marker lamp. 8-28V with a low power consumption of 0.4W at 12v. Impact resistant and fully sealed to ip67 standard. Pre-wired with twin sheathed cable. Measures 60mm long x 38mm wide x 32mm high. 3 Year warranty.

Additional information

Brand

Hella

Voltage

Optics

The optic appears clear until illuminated

Mounting

Surface mount.
Suitable for horizontal mounting.

Voltage

Multivolt for optimum brightness in 12 and 24-volt systems.

Power Consumption

<1W

Protection

Reverse polarity protection.
IP 6K6   (Protection against dust and high-pressure water jets)
IP 6K7   (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable.
Bulk pack pre-wired with 2.5m of sheathed multi-core cable.

Spare Part

9.2053.08 Black nylon housing

Lens Material

Grilamid®

Compliance

ADR 49/00
