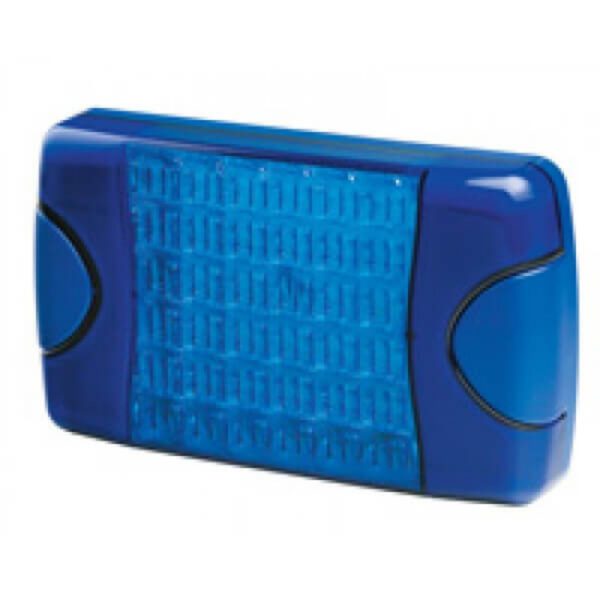

Hella Duraled Multi-Flash Compatible Blue Signal Lamp – Enhance Visibility & Safety

0 out of 5

$377.00

High-intensity, signal optic led lamp designed for emergency services featuring 10 programmable flash modes and synchronisation function with variable offset. High impact acrylic lens with enhanced impact strength and improved tolerance to chemicals.

Description

multivolt warning lamps for emergency vehicles. This range of warning lamps has 10 programmable flash modes and can be synchronised to flash alternately or in unison.

Additional information

Brand

Hella

Voltage

Mounting

Two-hole surface mount with mounting bushes supplied.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

9W continuous (less in flashing modes).

Protection

Reverse polarity and 5000-watt Transient Voltage Suppressor (TVS).
IP 6K6   (Protection against dust and high-pressure water jets)
IP 6K7   (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance

SAE J595 Class 1 (Red and amber versions) EMC e4 03 1925

Flashing Options

Steady-state The lamp operates as a continuous ON signal
Independent flash The lamp operates from an external flashing system
Flash state The lamp operates in the flash mode preselected by the user
Blitz state The lamp operates in a burst of quad flashes (pattern 4)

The blitz mode overrides the other operating modes and is triggered by switching the blue cable to the negative (-).
