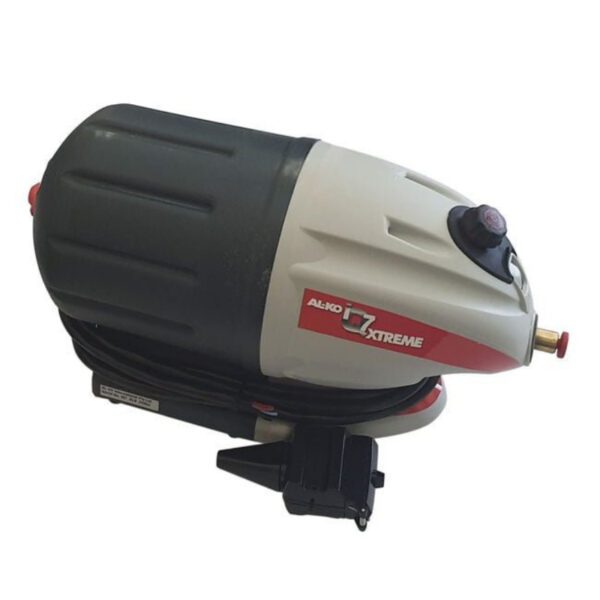

ALKO iQ7 Xtreme Actuator Only – Buy Now for Maximum Performance!


A high-performance trailer braking actuator for heavier light trailers, the design permits this product to provide full hydraulic trailer braking pressure in a split second. The new Spec R design uses state-of-the-art valve technology to increase braking performance by reducing the time taken to achieve full braking power – now only 0.29 seconds to full power makes this the fastest trailer brake actuator available.


iQ7 Xtreme is designed to significantly improve stopping performance and safety for trailers and caravans with hydraulic brakes. And iQ7 Xtreme includes in-built breakaway technology to stop your trailer if it becomes detached from the tow vehicle. No other parts are required.

Meet your legal requirements

In addition, AL-KO iQ7 Xtreme enables you to meet the legal requirement that all trailers with a loaded weight exceeding two tonnes (2.5 tonnes in New Zealand) must incorporate independent brake application.
Until recently the most popular solution was to fit a vacuum or compressed air system to the tow vehicle, but not only is this very expensive it often also means that the warranty of the tow vehicle is voided. Fitting the AL-KO iQ7 Xtreme system allows the legal use of hydraulic disc brakes for towed vehicles and trailers over 2 tonnes in Australia and 2.5 tonnes in New Zealand, and also provides superior stopping performance.

The bottom line is you’ll enjoy superior safety and peace of mind while knowing AL-KO iQ7 Xtreme has been designed and manufactured in Australia for Australia and New Zealand conditions, backed by AL-KO’s global expertise in towing safety.

The ultimate in reliability

AL-KO iQ7 Xtreme has been equipped with the latest superior computer processor circuit technology for maximum reliability. AL-KO has also completed over 220,000 cycle tests on iQ7 Outback.

This level of testing simulates the equivalent of setting off on an average of 42 trips per year over 10 years, without iQ7 Xtreme experiencing any problems. This re-enforces the quality and reliability of the technology. To complete the offer of complete peace of mind, AL-KO provides a market-leading 3-year warranty (When installed by an Authorised AL-KO iQ7  Installer).

Key features

  • Australian made with National service network
  • Suits caravans and boat trailers fitted with hydraulic disc brakes
  • Meets ADR breakaway requirements for trailers over 2500kg

Maximum hydraulic pressure for IQ7 Xtreme is 6.9 Mpa (1000psi) and fluid displacement of 21cc. Check that the pressure available is adequate for the brakes being used and the number of brakes does not exceed the available fluid displacement. For braking requirements, please refer to Vehicle Standards Bulletin VSB1.

Additional information




There are no reviews yet.

Be the first to review “ALKO iQ7 Xtreme Actuator Only – Buy Now for Maximum Performance!”

Maximum output pressure 1000 psi

Response time 0 – 1000 psi 0.29 sec

Weight 6.5kg

Height 255mm

Length 350mm

Width 185mm
