Power Up Your Trailer with ALKO 10″ Jockey Wheel Mover – 621250
$279.10
The Alko power mover is the easy and convenient way to move any caravan or trailer without back-breaking effort. The ratchet drive mechanism of the Alko power mover is strong enough to move your caravan or trailer even up small inclines when the ball load does not exceed 150kg.
Static capacity 350kg
Dynamic capacity 150kg
- Description
- Additional information
- Specifications
- Operating Instructions
Description
Alko jockey wheel 250mm power mover. Perfect for manoeuvring heavy caravans and trailers the Alko power mover is ideal for directing single axle caravans into tight spaces. Alko power mover features a ratchet mechanism that will allow the user to simply ratchet the caravan forwards or backwards with minimum fuss using the supplied ratchet handle. A great back-saving device this product is ideally suited to people who have a tight garage or parking spot to place park their RV and require the added control of the power mover.
Additional information
| Weight | 15 kg |
|---|---|
| Dimensions | 80 × 30 × 20 cm |
| Brand | AL-KO |
| Capacity | 350Kg |
- Surface finish: Zinc Plated
- Static Capacity (when van or trailer is stationairy): 350kg
- Dynamic Capacity (when ratchet mechanisim is used inline with operating instructions): 150kg
- Outer Tube Dia.: 48mm
- Weight: 14.70g
- Wheel Dia.: 245mm
- Mount holes per side: 1
- Mounting Hole Dia.: 13mm
- Hole spacing: 150mm

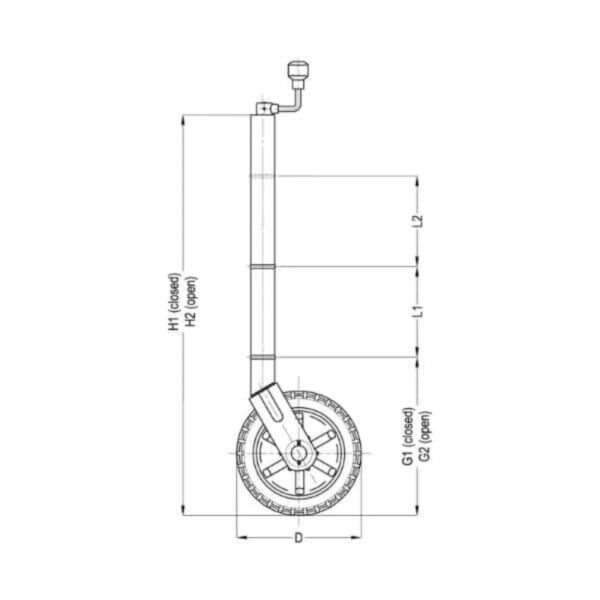

- Height Closed (H1):625mm
- Height Open (H2):875mm
- Bottom of wheel to bottom rib center when closed (G1): 335mm
- Bottom of wheel to bottob rib center when closed (G2): 585mm
For correct and safe use please follow the operating instructions below:
- Engage caravan/trailer park brake or chock wheels on the downhill side.
- Secure the Alko Power Mover to your caravan/trailer drawbar.
- Lower the power mover to the painted line on the telescopic tube.
- Select directional settings on the two pawls
- Fit or engage the power mover traction handle.
- Carefully release the caravan/trailer park brake.
- Raise and lower the traction handle for controlled easy movement.
