Alko 626200 Jockey Wheel 150mm with Large Swivel Mount | Heavy Duty Trailer Stabilizer

0 out of 5


This is an Alko premium jockey wheel, this comes with a swivel bracket, this bracket is perfect for quick and easy uncoupling of your trailer or caravan. To rotate this jockey wheel you simply have to pull the release handle, once this is pulled you can easily rotate the jockey wheel between its vertical upright position and its horizontal travelling position. this swivel bracket will save you a lot of time as you will not need to store your jockey wheel again.


Alko’s premium range of jockeys wheels with swivel brackets enables quick and easy uncoupling of your caravan or trailer. Simply pull the release handle and the jockey wheel rotates between upright and travelling positions. This time-saving feature means never again will you need to remove and store your jockey wheel.

Made from high-quality materials rated with a static capacity of 400kg, the range includes multiple bracket options and a choice of wheels sizes from 150mm to 250mm. The swivel bracket can be welded or bolted on using the range of speciality u-bolt kits available to suit your a-frame needs.

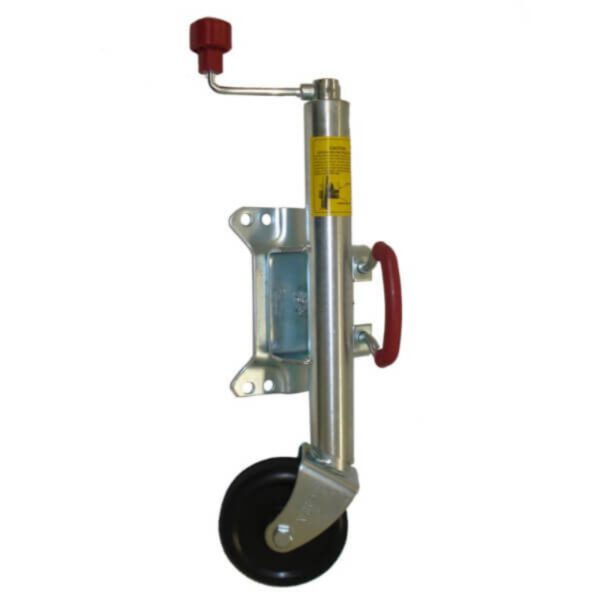

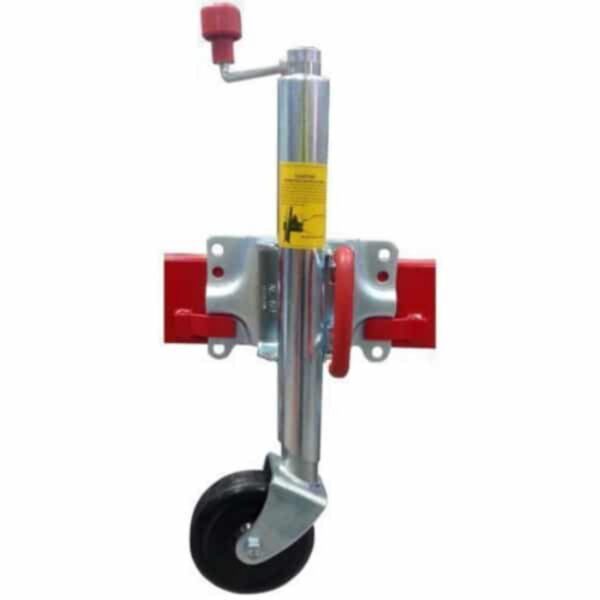

The alko 626200 is a standard height jockey wheel with a large swivel bracket and 150mm (6″) solid tyre. The zinc coated 48mm diameter shaft has a maximum extension of 250mm with a lift range of 300mm to 550mm between the ground and centre of the drawbar.

This unit is ideal for caravans or trailers which do not require much movement once detached from the tow vehicle. If movement is required or used on soft or uneven ground then larger diameter jockey wheels are recommended.

Additional information



  • Brand: Alko
  • Static Capacity: 400kg
  • Wheel Size: 150mm (6″) solid tyre
  • Weight: 7kg
  • Max Lift / extension: 250mm

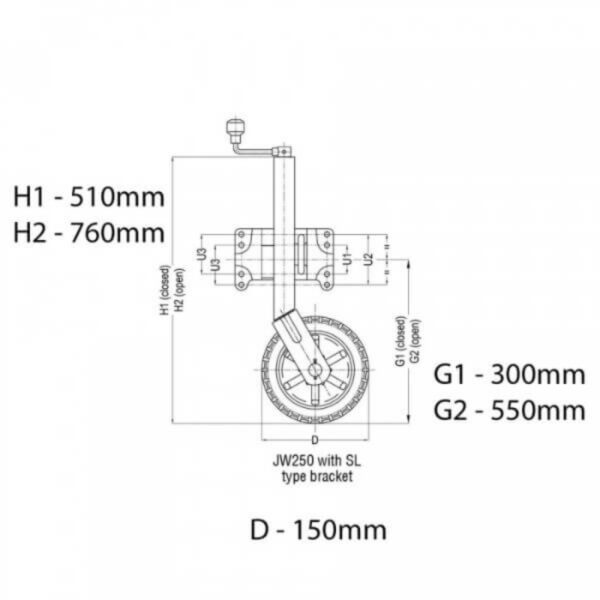

  • Minimum Ground Clearance(G1): 300mm (from the centre of drawbar)
  • Maximum Ground Clearance(G2): 550mm (from centre of drawbar)
  • Overall Shaft Height Open: 760mm
  • Overall Shaft Height Closed: 510mm
  • Finish: Zinc Plated
  • Clamp: Swivel Bracket – Bolt-on suit 75mm & 100mm u-bolts (not included)
  • Shipping Weight: 7.02 Kgs.
  • Shipping Dimensions: 67 cm x 28 cm x 13 cm
