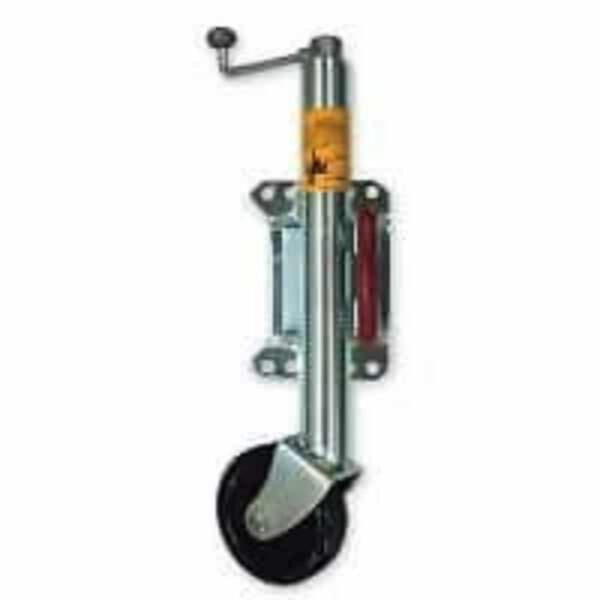

Galvanised Jockey Wheel with Swivel Bracket 150mm – Alko Quality

0 out of 5


Alko quality and ease of use is the benefits when you use an Alko galvanised jockey wheel with swivel bracket. There is no need to remove it from the trailer – just pull the release handle and the jockey wheel rotates into a suitable travelling position. A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar. It is ideal for marine use.


Alko trailtech 150mm dia c/w large locking pin swivel bracket
a budget jockey wheel from Alko suitable for all types of trailers and caravans.
large locking swivel pin clamp
plated finish
150mm solid tyre

Additional information



Static Capacity: 350kg
Outer Tube Dia.: 48mm
Weight: 6.75kg
Wheel Dia.: 150mm
Mounting Hole Dia.: 14mm
Min Spacing: 63mm
Max Spacing: 113mm
Height Closed: 510mm
Height Open: 760mm
Mount holes per side: 4
Bottom of Wheel to Mounting Plate Centre when Closed: 310mm
Bottom of Wheel to Mounting Plate Centre when Closed: 560mm


Red Handles
Solid Rubber Wheel
Quality Zinc Finish
Max Tow Ball Load 350kg / 770lbs
