"6" ALKO Jockey Wheel Trailtech Galvanised Swivel Bracket Swing Up - 626190G"

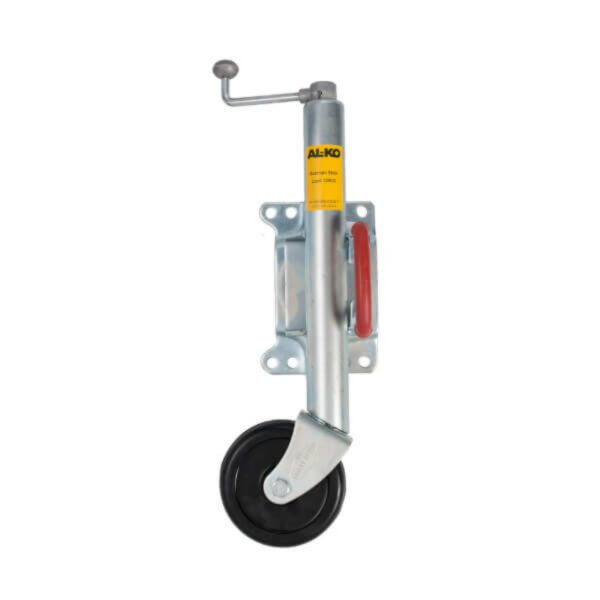

6″ ALKO Jockey Wheel Trailtech Galvanised Swivel Bracket Swing Up – 626190G

0 out of 5

$106.40

ALKO Jockey Wheel 6″ Trailtech Galvanised Swivel Bracket Swing up- 626190G

SKU: 626190G Tags: , , , , , , , , , , , ,
Add to Wishlist

Description

Quality and ease of use is the benefits when you use an Alko galvanised jockey wheel with swivel bracket. There is no need to remove it from the trailer – just pull the release handle and the jockey wheel rotates into a suitable travelling position. A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar. It is ideal for marine use. Alko galvanised jockey wheel features: rubber tyre integrated swing arm suspension high-quality corrosion protection wheel diameter: 150mm comes with large locking pin swivel bracket

rubber tyre
integrated swing arm suspension
high-quality corrosion protection
wheel diameter: 150mm
comes with large locking pin swivel bracket

Additional information

Brand

AL-KO

Weight 6.5KG

Surface finish Hot Dipped Gal/Dac

Static Capacity 350kg

Outer Tube Diam. 48mm

D(MM) 150

H1(MM) 510

H2(MM) 760

G1(MM) 310

G2(MM) 560

U1(MM) Hole Size (014) For Draw Bar Depth:

60MM – 63

100MM – 113

75MM – 88
