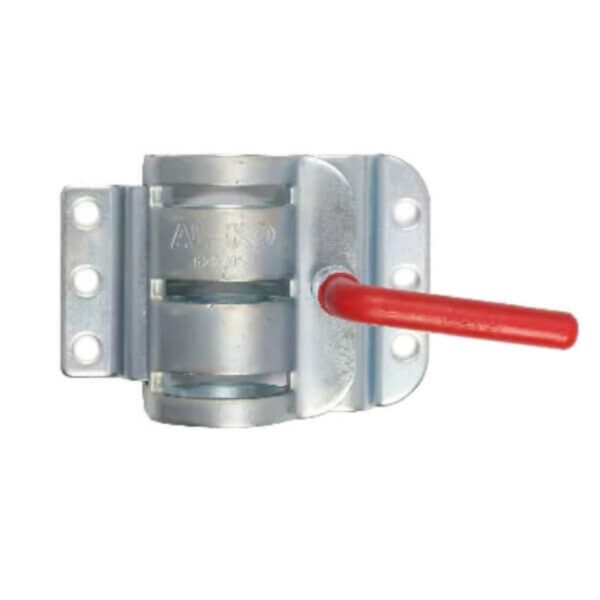

AL-KO 629915 Jockey Wheel Double Clamp Bracket: Removable 6 Hole Bolt-on/Weld-On Caravan
$39.95
AL-KO 629915 Jockey Wheel Double Clamp Bracket Removable 6 Hole Bolt-on / Weld-On Caravan – #629915
- Description
- Additional information
- Reviews (0)
- Features
Description
- A Jockey wheel clamp is us?d to fit a jockey-wheel to your drawbar
- The clamp handle securely fixes both sides of the clamp together placing the required holding pressure on the jockey wheel
- AL-KO jockey wheel C clamps are fitted with a steel threaded 90-degree handle
- A soft-touch coating has been applied to the handle in a high visibility red
- This jockey wheel clamp is the premium extra-wide version
- The holes are at 35mm and 65mm centers and are 150mm apart
- Suited for 48mm shaft
Additional information
Weight | 1.4 kg |
---|---|
Dimensions | 17 × 12 × 12 cm |
Brand | AL-KO |
Be the first to review “AL-KO 629915 Jockey Wheel Double Clamp Bracket: Removable 6 Hole Bolt-on/Weld-On Caravan”
You must be logged in to post a review.
Suits 350kg Jockey Wheels
Zinc Plated Finish
Bolt On or Weld On clamp
Double Clamp
Suits 48mm O.D. tube clamp type Jockey Wheels
6 Hole
Bolt Holes on Bracket 13mm
Between Holes on Bracket – Centre to Centre 150mm
Top Hole to Middle Hole Measurement – Centre to Centre 32mm
Top Hole to Bottom Hole Measurement – Centre to Centre 63mm
